Fixture Bases
FixturFab supports the following Test Fixture Bases.
Dev and Dev Pro fixtures are designed and manufactured in-house for fast turnaround. Production fixtures are built on Ingun bases and customized by FixturFab — they serve both development and production volumes. See fixture tiers for how the tiers compare.
Additional fixtures can also be supported, contact hello@fixturfab.com for additional information.

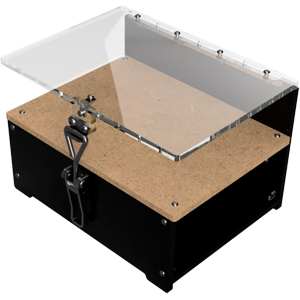

206-0016-00 - Dev
Standard development fixture for product development and low volume testing. Maximum DUT size of 196 x 180mm.
| Feature | Value |
|---|---|
| Useable Area (WxD) | 196 x 180mm |
| Outer Dimensions, Open | 206 x 195 x 140 mm |
| Outer Dimensions, Closed | 206 x 195 x 320 mm |
| Free Space Above DUT | 45mm |
| Max Contact Force | 200N |
| Parallel Contact Stroke | N/A |
| Weight | 1.4kg |
- Documentation

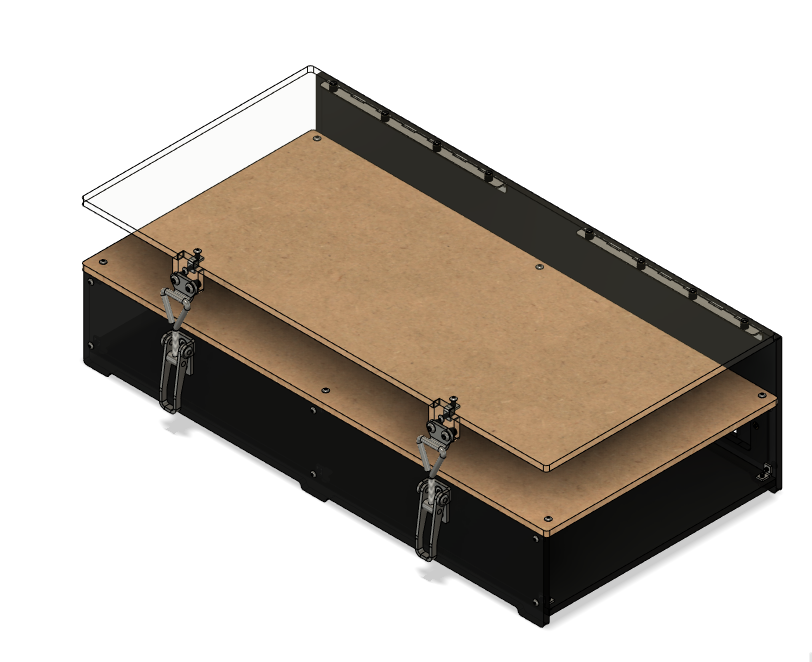

206-0017-00 - Dev XL
Standard development fixture for product development and low volume testing. Maximum DUT size of 218 x 447mm.
| Feature | Value |
|---|---|
| Useable Area (WxD) | 218 x 447mm |
| Outer Dimensions, Open | 457 x 235 x 140 mm |
| Outer Dimensions, Closed | 457 x 235 x 355 mm |
| Free Space Above DUT | 45mm |
| Max Contact Force | 200N |
| Parallel Contact Stroke | N/A |
| Weight | 2.8kg |
- Documentation

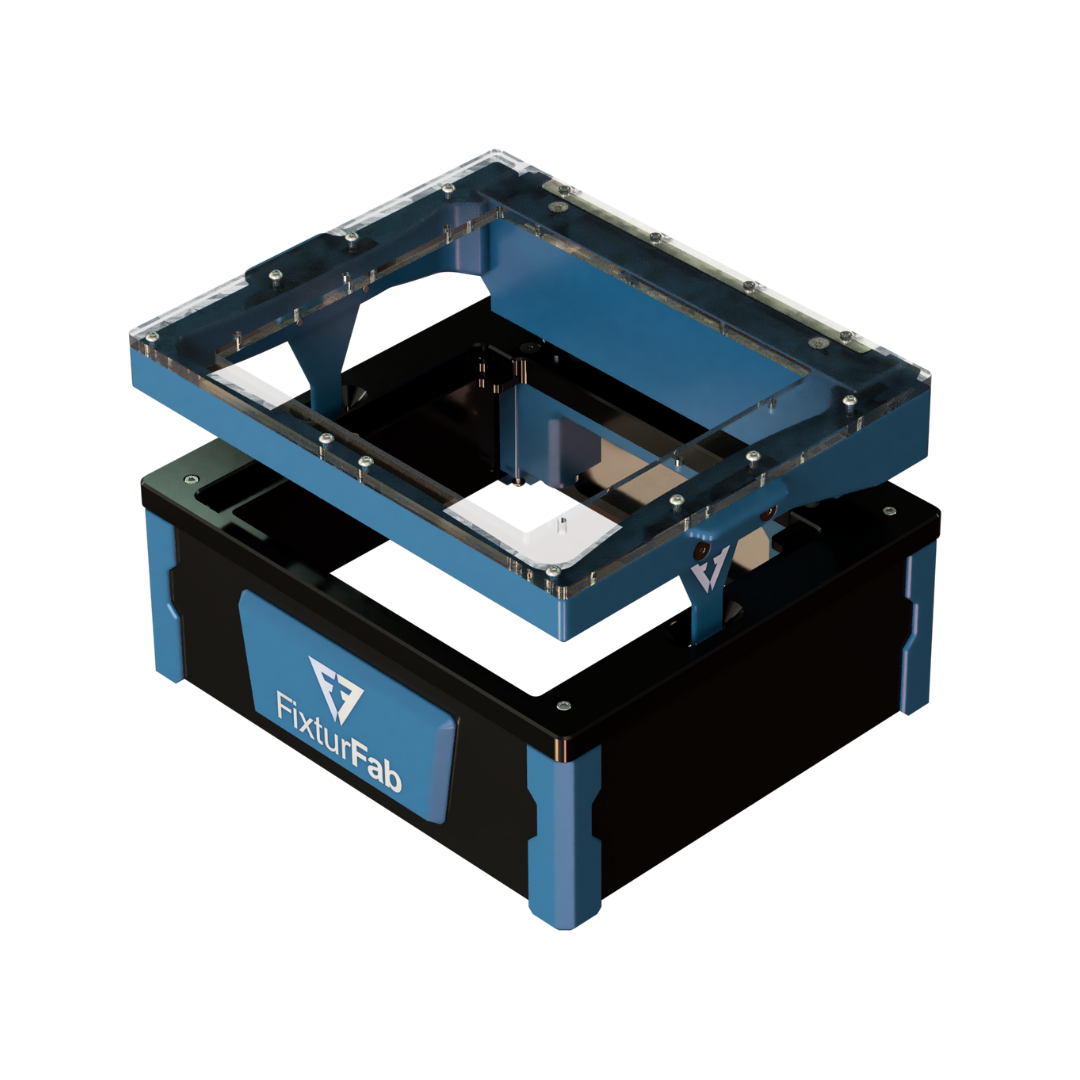

206-0025-00 - Dev Pro
Pro-series development fixture for product development, and low to medium volume production testing. Maximum DUT size of 170 x 145mm.
| Feature | Value |
|---|---|
| Useable Area (WxD) | 170 x 145mm |
| Interior Dimensions | 222 x 160 x 75mm |
| Outer Dimensions, Open | 255 x 215 x 160 mm |
| Outer Dimensions, Closed | 255 x 215 x 350 mm |
| Free Space Above DUT | 35mm |
| Max Contact Force | 200N |
| Parallel Contact Stroke | 15mm |
| Weight | 1.8kg |
- Documentation

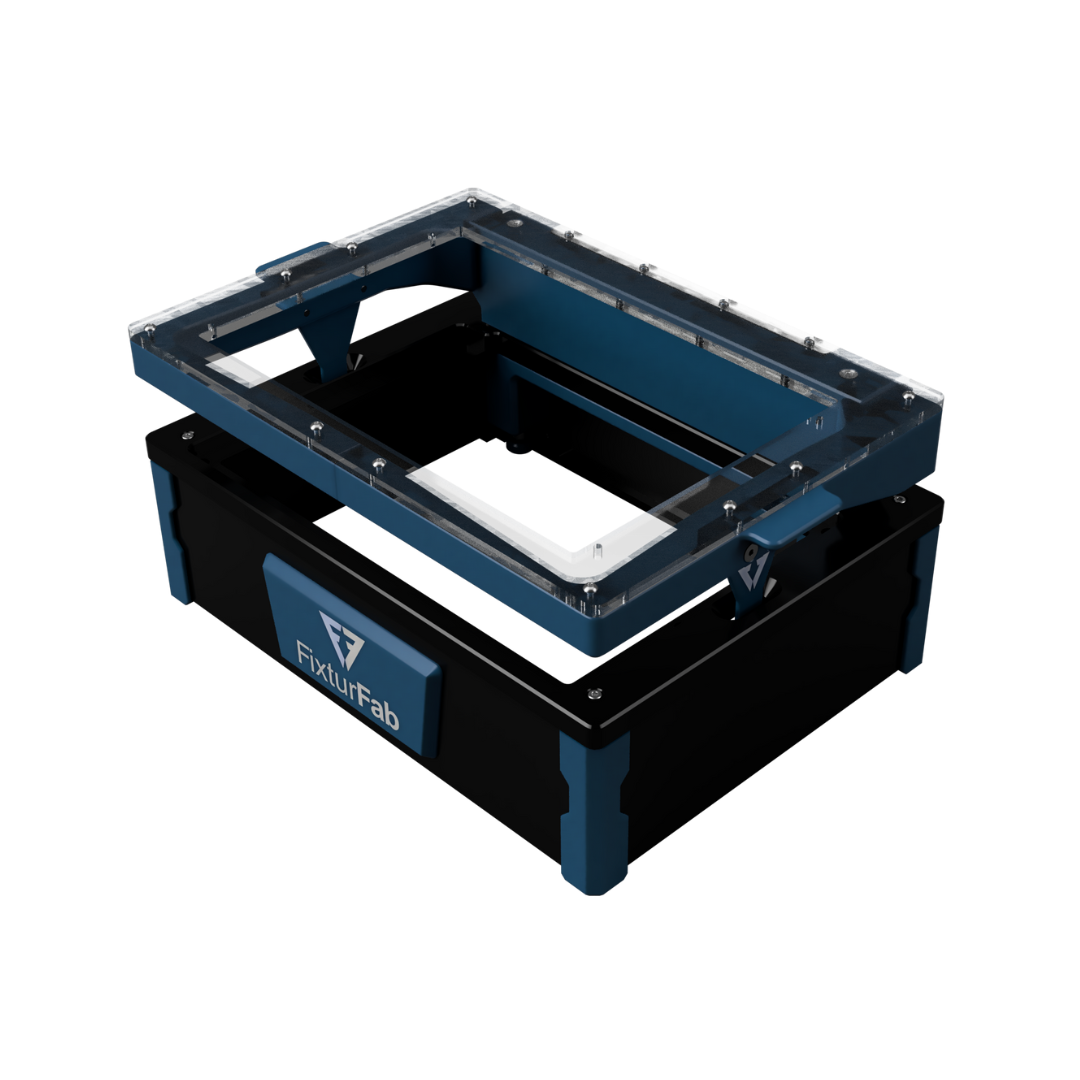

206-0023-00 - Dev Pro XL
Pro-series development fixture for product development, and low to medium volume production testing. Maximum DUT size of 232 x 151mm.
| Feature | Value |
|---|---|
| Useable Area (WxD) | 232 x 151mm |
| Interior Dimensions | 283 x 177 x 75mm |
| Outer Dimensions, Open | 328 x 230 x 160 mm |
| Outer Dimensions, Closed | 328 x 230 x 366 mm |
| Free Space Above DUT | 35mm |
| Max Contact Force | 200N |
| Parallel Contact Stroke | 15mm |
| Weight | 2.3kg |
- Documentation
206-0029-00 - Ingun MA360
Standard Ingun MA360 Fixture Base. Maximum DUT size of 160 x 100mm.
| Feature | Value |
|---|---|
| Useable Area (WxD) | 160 x 100mm |
| Outer Dimensions, Open | 230 x 330 x 381 mm |
| Outer Dimensions, Closed | 230 x 365 x 251 mm |
| Free Space Above DUT | 58mm |
| Max Contact Force | 300N |
| Parallel Contact Stroke | 20mm |
| Weight | 4.89kg |
- Documentation
206-0003-00 - Ingun MA 2111/D/H/S-5
Standard height, manual fixture base for testing medium volume PCB testing. Maximum DUT size of 150mm x 240mm.
| Feature | Value |
|---|---|
| Useable Area, Standard (WxD) | 150 x 240mm |
| Useable Area, ESD (WxD) | 150 x 240mm |
| Useable Area, RF (WxD) | 100 x 160mm |
| Outer Dimensions, Open | 320 x 463 x 583 mm |
| Outer Dimensions, Closed | 320 x 515 x 270 mm |
| Free Space Above DUT | 58mm |
| Closing Force | 120N |
| Max Contact Force | 2000N |
| Parallel Contact Stroke | 15mm |
| Weight | 9.3kg |
206-0010-00 - Ingun MA 2111/D/H/S-5/HG
High desk manual fixture base for testing medium volume PCB testing. Maximum DUT size of 150mm x 240mm.
| Feature | Value |
|---|---|
| Useable Area, Standard (WxD) | 150 x 240 mm |
| Useable Area, ESD (WxD) | 150 x 240 mm |
| Useable Area, RF (WxD) | 100 x 160 mm |
| Outer Dimensions, Open | 320 x 463 x 683 mm |
| Outer Dimensions, Closed | 320 x 515 x 370 mm |
| Free Space Above DUT | 58mm |
| Closing Force | 120N |
| Max Contact Force | 2000N |
| Parallel Contact Stroke | 15mm |
| Weight | 10.7kg |
206-0018-00 - Ingun MA 2112/D/H/S-7
Standard height manual fixture base for testing medium volume PCB testing. Maximum DUT size of 285 x 240 mm.
| Feature | Value |
|---|---|
| Useable Area, Standard (WxD) | 285 x 240 mm |
| Useable Area, ESD (WxD) | 285 x 240 mm |
| Useable Area, RF (WxD) | 215 x 180 mm |
| Outer Dimensions, Open | 492 x 464 x 591 mm |
| Outer Dimensions, Closed | 492 x 515 x 270 mm |
| Free Space Above DUT | 58mm |
| Closing Force | 120N |
| Max Contact Force | 2000N |
| Parallel Contact Stroke | 15mm |
| Weight | 11.3kg |
206-0020-00 - Ingun MA 2112/D/H/S-7/HG
High desk manual fixture base for testing medium volume PCB testing. Maximum DUT size of 285 x 240 mm.
| Feature | Value |
|---|---|
| Useable Area, Standard (WxD) | 285 x 240 mm |
| Useable Area, ESD (WxD) | 285 x 240 mm |
| Useable Area, RF (WxD) | 215 x 180 mm |
| Outer Dimensions, Open | 492 x 464 x 691 mm |
| Outer Dimensions, Closed | 492 x 515 x 370 mm |
| Free Space Above DUT | 58mm |
| Closing Force | 120N |
| Max Contact Force | 2000N |
| Parallel Contact Stroke | 15mm |
| Weight | 12.7kg |
206-0002-00 - Ingun MA 2113/D/H/S-10
Standard height manual fixture base for testing medium volume PCB testing. Maximum DUT size of 440 x 310 mm.
| Feature | Value |
|---|---|
| Useable Area, Standard (WxD) | 440 x 310 mm |
| Useable Area, ESD (WxD) | 440 x 310 mm |
| Useable Area, RF (WxD) | 375 x 240 mm |
| Outer Dimensions, Open | 648 x 533 x 657 mm |
| Outer Dimensions, Closed | 648 x 584 x 270 mm |
| Free Space Above DUT | 58mm |
| Closing Force | 120N |
| Max Contact Force | 2000N |
| Parallel Contact Stroke | 15mm |
| Weight | 15.4kg |
206-0006-00 - Ingun MA 2113/D/H/S-10/HG
High desk manual fixture base for testing medium volume PCB testing. Maximum DUT size of 440 x 310 mm.
| Feature | Value |
|---|---|
| Useable Area, Standard (WxD) | 440 x 310 mm |
| Useable Area, ESD (WxD) | 440 x 310 mm |
| Useable Area, RF (WxD) | 440 x 310 mm |
| Outer Dimensions, Open | 648 x 533 x 757 mm |
| Outer Dimensions, Closed | 648 x 584 x 370 mm |
| Free Space Above DUT | 58mm |
| Closing Force | 120N |
| Max Contact Force | 2000N |
| Parallel Contact Stroke | 15mm |
| Weight | 16.6kg |
206-0007-00 - Ingun MA 2114/D/H/S-10
Standard height manual fixture base for testing medium volume PCB testing. Maximum DUT size of 540 x 310 mm.
| Feature | Value |
|---|---|
| Useable Area, Standard (WxD) | 540 x 310 mm |
| Useable Area, ESD (WxD) | 540 x 310 mm |
| Useable Area, RF (WxD) | N/A |
| Outer Dimensions, Open | 748 x 533 x 653 mm |
| Outer Dimensions, Closed | 748 x 584 x 270 mm |
| Free Space Above DUT | 58mm |
| Closing Force | 120N |
| Max Contact Force | 2000N |
| Parallel Contact Stroke | 15mm |
| Weight | 17kg |
206-0008-00 - Ingun MA 2114/D/H/S-10/HG
High desk manual fixture base for testing medium volume PCB testing. Maximum DUT size of 540 x 310 mm .
| Feature | Value |
|---|---|
| Useable Area, Standard (WxD) | 540 x 310 mm |
| Useable Area, ESD (WxD) | 540 x 310 mm |
| Useable Area, RF (WxD) | N/A |
| Outer Dimensions, Open | 748 x 533 x 753 mm |
| Outer Dimensions, Closed | 748 x 584 x 370 mm |
| Free Space Above DUT | 58mm |
| Closing Force | 120N |
| Max Contact Force | 2000N |
| Parallel Contact Stroke | 15mm |
| Weight | 19kg |
