Design for Test Report Summary

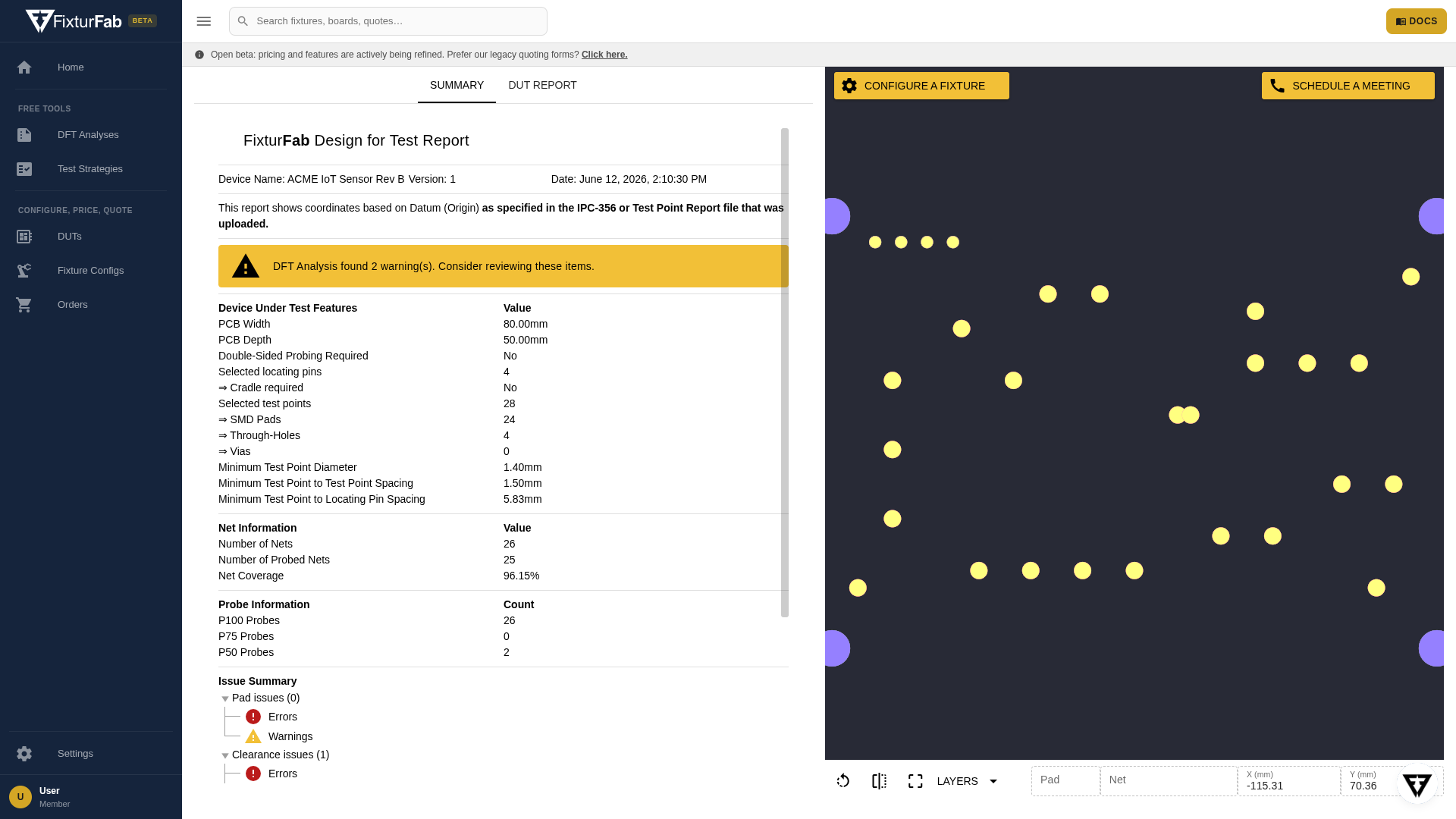

The DFT Report Summary page displays a preview of the configured Device Under Test (DUT) and a summary page of all the DUT characteristics, fixture information, and detected issues.

Report Summary

The top section of the DFT report summarizes the basic report information, such as the name of the DUT, date the report was created, and a status bar showing whether there are errors or warnings.

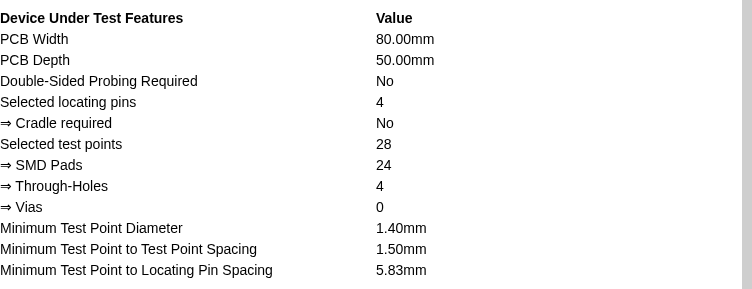

Device Under Test Features

The DUT Features section contains information that was identified from the IPC-356 Netlist file. This includes the following:

• DUT/PCB Dimensions
• Double-Sided Probing Requirements
• Locating Method
• Number and Type of Test Points
• Minimum Test Point Features

Net Information

The number of nets, number of probed nets, and net coverage is displayed in this section. While greater net coverage is better, functional test fixtures have the ability to test many of the non-accessed nets as long as a thoughtful test plan has been developed.

Probe Information

The type of probe that can be used is displayed in this section. In general, there are 3 different probe "types" that we use, these are referred to as P100, P75, and P50 probes.

The numeric value corresponds to the number of "mils" or 0.001in that is the minimum center to center test point spacing for the probe. So P100 probes can be placed 100mil (2.54mm) apart, P75 probes can be placed 75mil (1.9mm) apart, etc.

These counts are suggestions, and during the design of the fixture may change. For example, you may decide to use all P75 probes instead of P100 and P75 so that you only need to replace a single type of probe in the future.

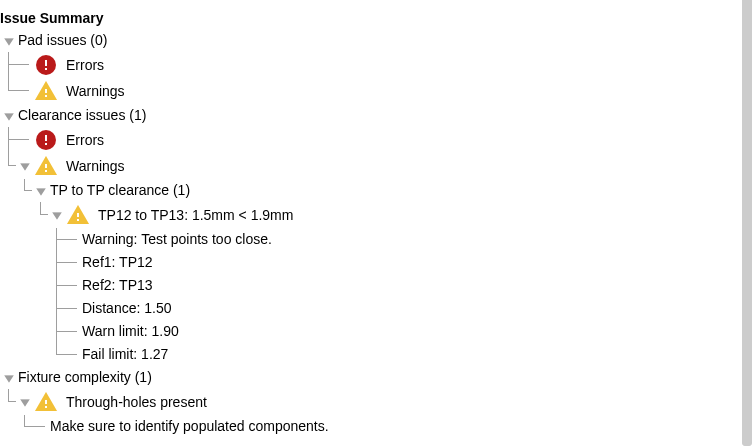

Issue Summary

The Issue Tree will be displayed fully expanded. This will highlight all of the errors and warnings identified by the DFT tool.

Issues will either be errors or warnings, to find out more about these issues, see this page.
